Курсовая работа: Разработка таймера

5. Слои

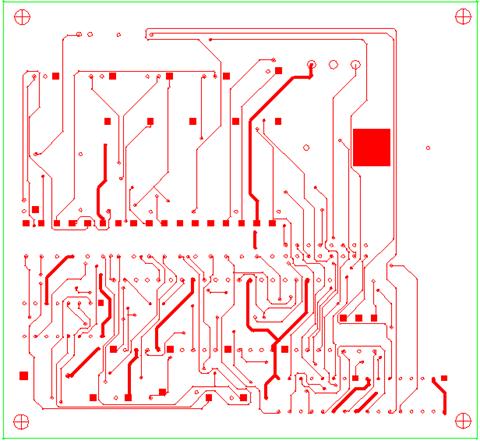

Рис.2. Первый слой

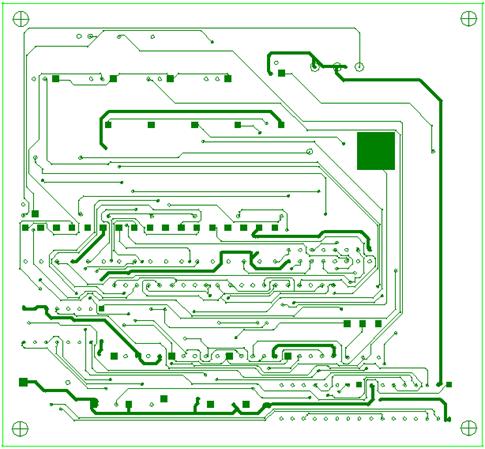

Рис.3. Второй слой.

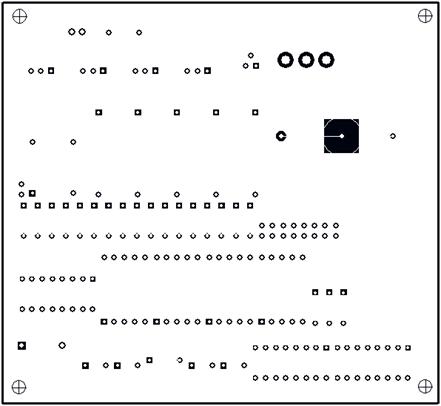

Рис.4.Карта отверстий.

6. Список связей (Net list)

ACCEL_ASCII"E:\иск Е\Рефераты с интернета\институт\4 курс\4 курс2\P-CAD\Библиотеки\таймер\SXEMA.net"

(asciiHeader

(asciiVersion 3 0)

(timeStamp 2006 5 11 9 39 29)

(program "P-CAD 2002 Schematic" "17.00.50")

(copyright "Copyright © 1992-2002 Altium Limited")

(fileAuthor "")

(headerString "")

(fileUnits mm)

(guidString "{B628CF50-E11C-4ACB-A528-FD33DC2F2E00}")

)

(netlist "Netlist_1"

(compInst "DD1"

(compRef "К176ИЕ18_1")

(originalName "К176ИЕ18")

(patternName "2103.16-1")

)

(compInst "T1"

 (compRef "TO8013_1")

 (originalName "TO8013")

(patternName "TO8013")

)

(compInst "C1"

(compRef "CAP200RP_H_1")

(originalName "CAP200RP_H")

(patternName "CAP200RP")

(attr "Description" "Axial Polarized Capacitor" (pt 10.4648 12.2682) (justify LowerRight) (textStyleRef "(Default)") (constraintUnits string) )

)

(compInst "HL1"

(compRef "IND13_1")

(originalName "IND13")

(patternName "IND13")

)

(compInst "R17"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "C3"

(compRef "CAP_VAR_1")

(originalName "CAP_VAR")

(patternName "CAP_VAR")

(attr "ComponentHeight" "51" (pt -0.00001 -0.00001) (textStyleRef "(Default)") (constraintUnits mil) )

)

(compInst "R3"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "SB1.2"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "R1"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "VD1"

(compRef "D220_1")

(originalName "D220")

(patternName "VD3")

)

(compInst "SB2"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "VD2"

(compRef "D220_1")

(originalName "D220")

(patternName "VD3")

)

(compInst "R20"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "VD5"

(compRef "D220_1")

(originalName "D220")

(patternName "VD3")

)

(compInst "DD2"

(compRef "К176ИЕ13_1")

(originalName "К176ИЕ13")

(patternName "2103.16-1")

)

(compInst "SB6"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "C4"

(compRef "CAP200RP_V_1")

(originalName "CAP200RP_V")

(patternName "CAP200RP")

(attr "Description" "Axial Polarized Capacitor" (pt 10.4648 12.2682) (justify LowerRight) (textStyleRef "(Default)") (constraintUnits string) )

)

(compInst "VD3"

(compRef "D220_1")

(originalName "D220")

(patternName "VD3")

)

(compInst "R9"

(compRef "R0125_1")

 (originalName "R0125")

(patternName "R0125")

)

(compInst "VT1"

(compRef "KT503_1")

(originalName "KT503")

(patternName "KT26-1")

)

(compInst "R10"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R11"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R12"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R13"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "VT2"

(compRef "KT503_1")

(originalName "KT503")

(patternName "KT26-1")

)

(compInst "R2"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R14"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "SB4"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "VT3"

(compRef "KT503_1")

(originalName "KT503")

(patternName "KT26-1")

)

(compInst "VT4"

(compRef "KT503_1")

(originalName "KT503")

(patternName "KT26-1")

)

(compInst "VT5"

(compRef "KT3102A_1")

(originalName "KT3102A")

(patternName "KT-1-12A")

)

(compInst "R4"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R5"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R6"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "SB3"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "SB1.3"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "SB5"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "R7"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R15"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R8"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R18"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "R19"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "VD4"

(compRef "D220_1")

(originalName "D220")

(patternName "VD3")

)

(compInst "R16"

(compRef "R0125_1")

(originalName "R0125")

(patternName "R0125")

)

(compInst "C2"

(compRef "CAP200RP_H_1")

(originalName "CAP200RP_H")

(patternName "CAP200RP")

(attr "Description" "Axial Polarized Capacitor" (pt 10.4648 12.2682) (justify LowerRight) (textStyleRef "(Default)") (constraintUnits string) )

)

(compInst "VS1"

(compRef "KU202_1")

(originalName "KU202")

(patternName "VSS")

)

(compInst "C5"

(compRef "CAP200RP_H_1")

(originalName "CAP200RP_H")

(patternName "CAP200RP")

(attr "Description" "Axial Polarized Capacitor" (pt 10.4648 12.2682) (justify LowerRight) (textStyleRef "(Default)") (constraintUnits string) )

)

(compInst "HL2"

(compRef "IND13_1")

(originalName "IND13")

(patternName "IND13")

)

(compInst "B1"

(compRef "BATAR_1")

(originalName "BATAR")

(patternName "BATAR")

)

(compInst "HL3"

(compRef "IND13_1")

(originalName "IND13")

(patternName "IND13")

)

(compInst "HL4"

(compRef "IND13_1")

(originalName "IND13")

(patternName "IND13")

)

(compInst "DD4"

(compRef "К176ИД3_1")

(originalName "К176ИД3")

(patternName "2103.16-1")

)

(compInst "XN1"

(compRef "JUMPER_1")

(originalName "JUMPER")

(compValue " ")

(patternName "JUMPER")

)

(compInst "ZQ1"

(compRef "ZQ_1")

(originalName "ZQ")

(patternName "ZQ")

)

(compInst "SB1.1"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(compInst "X3"

(compRef "POWER1_1")

(originalName "POWER1")

(patternName "POWER1")

)

(compInst "SB1.4"

(compRef "SB_1")

(originalName "SB")

(patternName "SB")

)

(net "GND"

(node "DD4" "8")

(node "DD2" "8")

(node "DD1" "8")

(node "HL4" "8")

(node "HL4" "5")

(node "HL1" "5")

(node "HL1" "3")

(node "DD4" "6")

(node "DD4" "7")

(node "HL3" "8")

(node "HL3" "5")

(node "VD5" "1")

(node "DD1" "14")

(node "R9" "1")

(node "C4" "MINUS")

(node "C1" "PLUS")

(node "C3" "1")

(node "C2" "PLUS")

(node "R7" "2")

(node "HL2" "8")

(node "B1" "1")

(node "C5" "MINUS")

(attr "Width" "1.2mm" (pt -0.00001 -0.00001) (textStyleRef "(Default)") (constraintUnits mil) )

)

(net "+9V"

(node "DD4" "16")

(node "DD2" "16")

(node "DD1" "16")

(node "DD2" "2")

(node "SB1.1" "2")

(node "R19" "1")

(node "SB5" "1")

(node "X3" "3")

(node "X3" "2")

(node "B1" "2")

(node "VT5" "3")

(attr "Width" "1.2mm" (pt -0.00001 -0.00001) (textStyleRef "(Default)") (constraintUnits mil) )

)

(net "NET00000"

(node "DD2" "11")

(node "C4" "PLUS")

(node "R7" "1")

(node "VD1" "2")

(node "VD2" "2")

(node "VD3" "2")

)

(net "NET00096"

(node "DD1" "12")

(node "C1" "MINUS")

(node "R1" "1")

(node "ZQ1" "2")

)

(net "NET00090"

(node "DD1" "7")

(node "VD4" "1")

(node "R20" "1")

)

(net "NET00001"

(node "R8" "1")

(node "SB6" "1")

)

(net "NET00007"

(node "R6" "1")

(node "VT4" "2")

)

(net "NET00091"

(node "SB1.1" "1")

(node "VD4" "2")

(node "R20" "2")

)

(net "NET00092"

(node "DD1" "13")

(node "R2" "1")

(node "R1" "2")

)

(net "NET00086"

(node "DD1" "15")

(node "R3" "2")

)

(net "NET00017"

(node "VD1" "1")

(node "SB2" "2")

)

(net "NET00018"

(node "VD2" "1")

(node "SB3" "2")

)

(net "NET00002"

(node "T1" "1")

(node "SB1.4" "2")

(node "XN1" "2")

)

(net "NET00019"

(node "VD3" "1")

(node "SB4" "2")

)

(net "NET00011"

(node "T1" "2")

(node "SB1.4" "1")

(node "XN1" "1")

)

(net "NET00095"

(node "R2" "2")

(node "C3" "2")

(node "C2" "MINUS")

(node "ZQ1" "1")

)

(net "NET00003"

(node "DD2" "3")

(node "DD4" "5")

)

(net "NET00030"

(node "DD2" "10")

(node "DD1" "11")

)

(net "NET00004"

(node "DD2" "14")

(node "DD4" "3")

)

(net "NET00039"

(node "DD2" "4")

(node "DD1" "5")

)

(net "NET00005"

(node "DD2" "15")

(node "DD4" "2")

)

(net "NET00006"

(node "DD2" "1")

(node "DD4" "4")

)

(net "NET00009"

(node "DD2" "12")

(node "DD4" "1")

)

(net "NET00079"

(node "R3" "1")

(node "VT1" "2")

)

(net "NET00080"

(node "R4" "1")

(node "VT2" "2")

)

(net "NET00048"

(node "DD4" "14")

(node "R15" "2")

)

(net "NET00050"

(node "DD2" "6")

(node "SB5" "2")

(node "R9" "2")

(node "C5" "PLUS")

)

(net "NET00044"

(node "DD2" "7")

(node "DD1" "9")

(node "R17" "2")

)

(net "NET00049"

(node "SB1.3" "1")

(node "X3" "1")

(node "SB6" "2")

)

(net "NET00081"

(node "R5" "1")

(node "VT3" "2")

)

(net "NET00051"

(node "DD2" "5")

(node "DD1" "10")

)

(net "NET00036"

(node "DD4" "15")

(node "R16" "2")

)

(net "NET00062"

(node "HL1" "8")

(node "VT1" "3")

)

(net "NET00058"

(node "VD5" "2")

(node "R8" "2")

(node "VT4" "1")

(node "VT3" "1")

(node "VT1" "1")

(node "VT2" "1")

)

(net "NET00078"

(node "HL4" "3")

(node "VT2" "3")

)

(net "NET00064"

(node "HL3" "3")

(node "VT3" "3")

)

(net "NET00076"

(node "HL2" "3")

(node "VT4" "3")

)

(net "NET00029"

(node "SB1.3" "2")

(node "T1" "3")

(node "R18" "2")

)

(net "NET00027"

(node "R17" "1")

(node "VT5" "2")

)

(net "NET00028"

(node "VS1" "3")

(node "R18" "1")

(node "VT5" "1")

)

(net "NET00046"

(node "T1" "4")

(node "VS1" "2")

)

(net "NET00045"

(node "R19" "2")

(node "VS1" "1")

)

(net "NET00073"

(node "HL4" "10")

(node "HL1" "10")

(node "HL3" "10")

(node "R15" "1")

(node "HL2" "10")

)

(net "NET00074"

(node "HL4" "4")

(node "HL1" "4")

(node "HL3" "4")

(node "R12" "1")

(node "HL2" "4")

)

(net "NET00075"

(node "HL4" "7")

(node "HL1" "7")

(node "R10" "1")

(node "HL3" "7")

(node "HL2" "7")

)

(net "NET00012"

(node "DD4" "13")

(node "R14" "2")

)

(net "NET00016"

(node "DD4" "12")

(node "R13" "2")

)

(net "NET00069"

(node "HL4" "6")

(node "HL1" "6")

(node "HL3" "6")

(node "R11" "1")

(node "HL2" "6")

)

(net "NET00026"

(node "DD4" "11")

(node "R12" "2")

)

(net "NET00037"

(node "DD4" "10")

(node "R11" "2")

)

(net "NET00015"

(node "SB1.2" "2")

(node "HL2" "5")

)

(net "NET00040"

(node "DD4" "9")

(node "R10" "2")

)

(net "NET00063"

(node "DD1" "1")

(node "R4" "2")

(node "SB2" "1")

)

(net "NET00083"

(node "DD1" "2")

(node "R5" "2")

(node "SB3" "1")

)

(net "NET00038"

(node "HL4" "9")

(node "HL1" "9")

(node "R16" "1")

(node "HL3" "9")

(node "HL2" "9")

)

(net "NET00066"

(node "R6" "2")

(node "DD1" "3")

(node "SB4" "1")

)

(net "NET00056"

(node "HL4" "1")

(node "HL1" "1")

(node "HL3" "1")

(node "R14" "1")

(node "HL2" "1")

)

(net "NET00067"

(node "SB1.2" "1")
